Best Quality Hammer Union Supplier in India | High-Pressure Flowline Fittings

We are Global Business Developer and Design Consultant– We specialize in delivering high-quality solutions for demanding high-pressure oilfield and energy applications. Firstly, Hammer union products are designed to perform reliably under extreme operating conditions.

Additionally, it is a Die forging component, Material of construction ASTM A105, A1018, AISI 1040/4130 to ensure strength and long service life. Consequently, our solutions deliver dependable performance even in the most challenging industrial environments.

hammer union business consultant rawatflowline.com, AR engineering services

Hammer Union Assembly

  1. Male sub
  2. Female Sub
  3. Wing Nut
  4. Rubber Seal
500 PSI TO 20000 PSI

Hammer Union Range

Firstly, we handle hammer union design with precision and industry expertise. Next, we manage complete development, including forging, machining, and quality control. Moreover, we ensure compliance with required technical standards for reliable performance. In addition, we take care of packaging, export processes, and logistics. Finally, we support global sales by connecting products to international markets, delivering end-to-end solutions seamlessly.

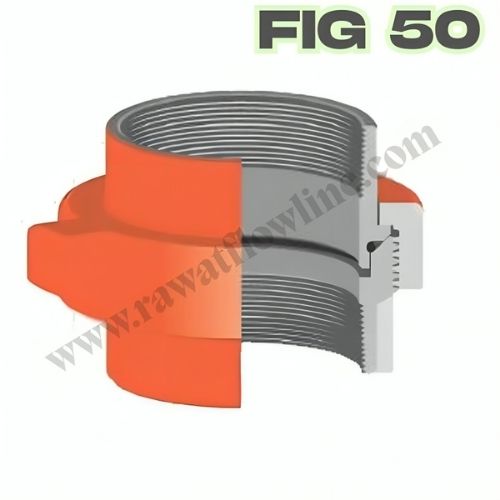

Cross‑sectional view of a split pipe coupling with orange halves clamping around a threaded metal pipe, showing internal threads and clamp mechanism.

Hammer Union FIG 50

500 PSI
Rubber O-Ring Included

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
4″13.72ASTM A 105
5″10.8ASTM A 105

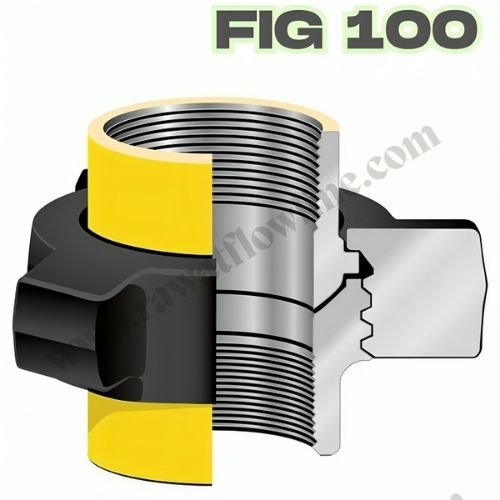

FIG 100

Hammer union FIG 100

CWP 1000 PSI – TP 1500 PSI
Metal to Metal Seal

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
2″2.4ASTM A 105
2-1/2″3.63ASTM A 105
3″6.42ASTM A 105
4″10.55ASTM A 105
5″14.90ASTM A 105
6″20.64ASTM A 105
8″30ASTM A 105
1045.4ASTM A 105
12″82ASTM A 105

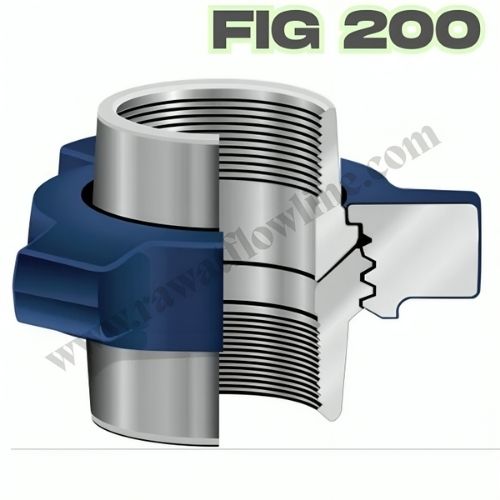

FIG 200

Hammer Union FIG 200

CWP 2000 PSI – TP 3000 PSI
Metal to Metal Seal

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
1″.82ASTM A 105
1-1/4″1.09ASTM A 105
1-1/2″1.09ASTM A 105
2″2.4ASTM A 105
2-1/2″4.54ASTM A 105
3″6.96ASTM A 105
4″9.21ASTM A 105
5″14.90ASTM A 105
6″21.77ASTM A 105
8″30ASTM A 105
1045.4ASTM A 105
12″82ASTM A 105

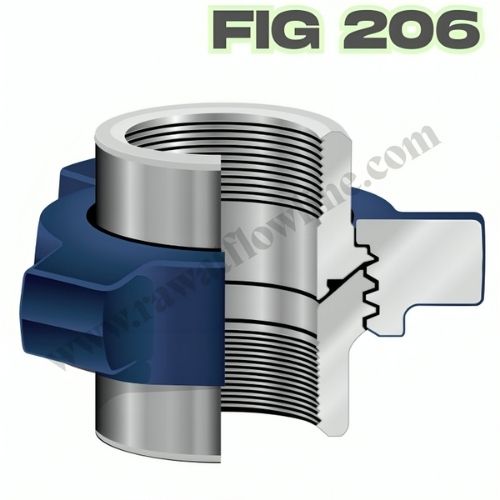

FIG 206

Hammer Union FIG 206

CWP 2000 PSI – TP 3000 PSI
Rubber O-Ring Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
1″.82ASTM A 105
1-1/4″1.09ASTM A 105
1-1/2″1.09ASTM A 105
2″2.4ASTM A 105
2-1/2″4.54ASTM A 105
3″6.96ASTM A 105
4″9.21ASTM A 105
5″14.90ASTM A 105
6″21.77ASTM A 105
8″30ASTM A 105
1045.4ASTM A 105
12″82ASTM A 105

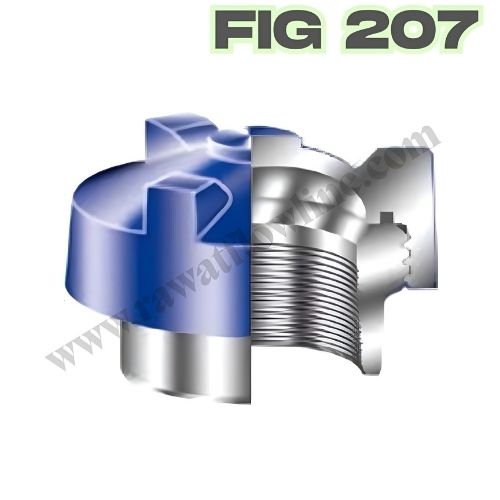

FIG 207

FIG 207

CWP 2000 PSI – TP 3000 PSI
Rubber O-Ring Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
3″4.49ASTM A 105
4″7.55ASTM A 105
6″18.50ASTM A 105
3″Blanking CapBlanking Cap3.12ASTM A 105
4″Blanking CapBlanking Cap5.49ASTM A 105
6″Blanking CapBlanking Cap12.85ASTM A 105

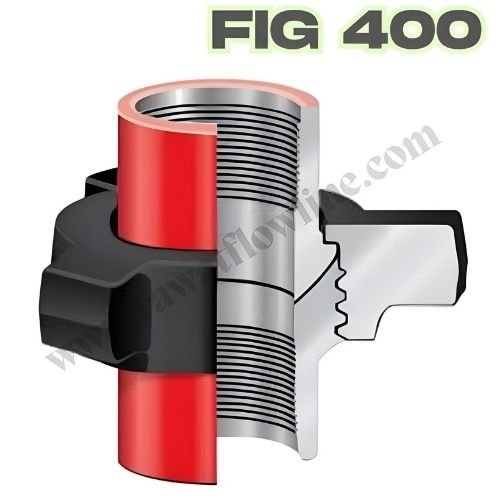

FIG 400

FIG 400

CWP 4000 PSI – TP 6000 PSI
Rubber O-Ring Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
2″5.03AISI 1040/4130
3″8.82AISI 1040/4130
4″14.65AISI 1040/4130
5″23AISI 1040/4130
6″36.65AISI 1040/4130
12″82AISI 1040/4130

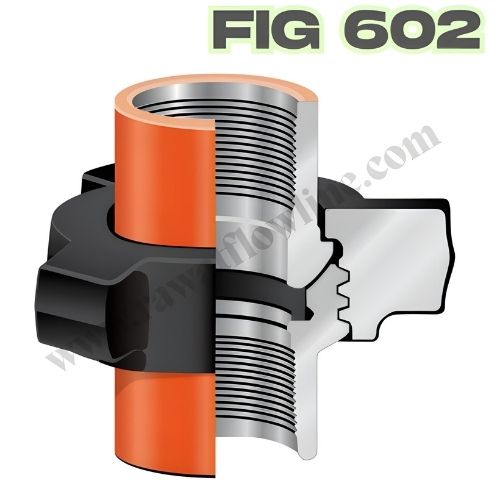

FIG 602

FIG 602

CWP 6000 PSI – TP 9000 PSI
Rubber Seal-Ring Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
1″1.59AISI 1040/4130
1-1/4″4.58AISI 1040/4130
1-1/2″4.13AISI 1040/4130
2″5.94AISI 1040/4130
3″10.52AISI 1040/4130
4″15.13AISI 1040/4130

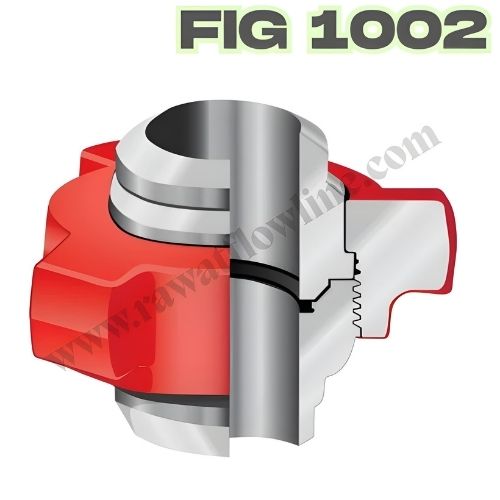

FIG 1002

FIG 1002

CWP 10000 PSI – TP 15000 PSI
Rubber Seal-Ring (1″ till 4″ Size) O-Ring (5″, 6″) Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
1″1.61AISI 4130
1-1/4″4.65AISI 4130
1-1/2″4.65AISI 4130
2″6.06AISI 4130
3″10.9AISI 4130
4″18.1AISI 4130
5″26.1AISI 4130
6″44.45AISI 4130

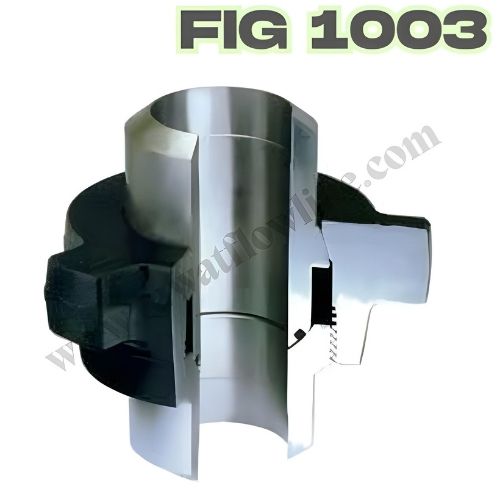

FIG 1003

FIG 1003

CWP 10000 PSI – TP 15000 PSI
Rubber O-Ring Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
3″20.62AISI 4130
4″33.23AISI 4130
5″35.29AISI 4130

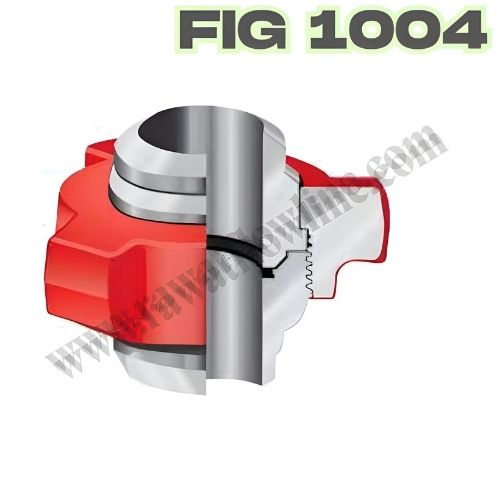

FIG 1004

FIG 1004

CWP 10000 PSI – TP 15000 PSI
Rubber Seal-Ring Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
4″33.23AISI 4130
5″35.29AISI 4130

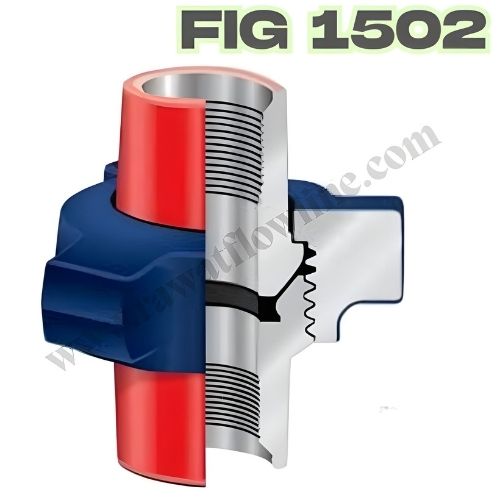

FIG 1502

FIG 1502

CWP 15000 PSI – TP 22500 PSI
Rubber Seal-Ring Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
1″4.15AISI 4130
1-1/2″8.86AISI 4130
2″9.62AISI 4130
3″14.22AISI 4130
4″37.19AISI 4130
5″43.8AISI 4130
6″71.4AISI 4130

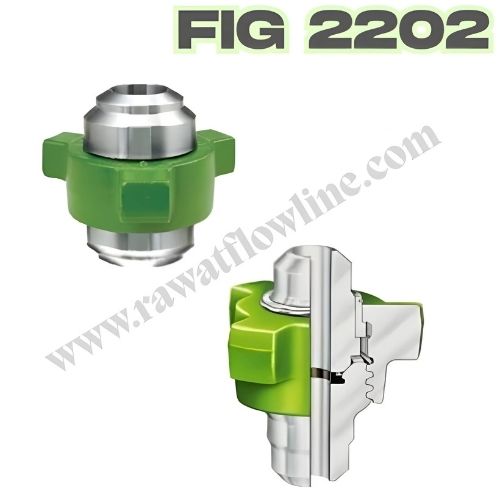

FIG 2202

FIG 2202

CWP 15000 PSI – TP 20000 PSI
Rubber Seal-Ring Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
3″10.43AISI 4130
4″21.71AISI 4130
5″34.47AISI 4130

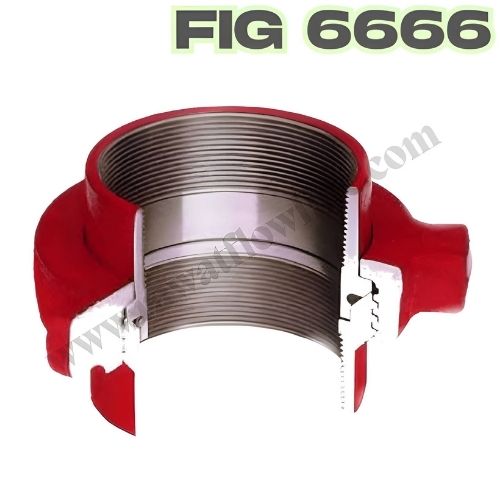

FIG 6666

FIG 6666

CWP 6000 PSI – TP 9000 PSI
Rubber Seal-Ring Included Nitrile for Std Service/Viton for H2S Service

SIZETHREADED ENDBUTTWELD ENDWEIGHT(KG)MATERIAL
1-1/2″5.44AISI 4130
2″5.90AISI 4130
size range

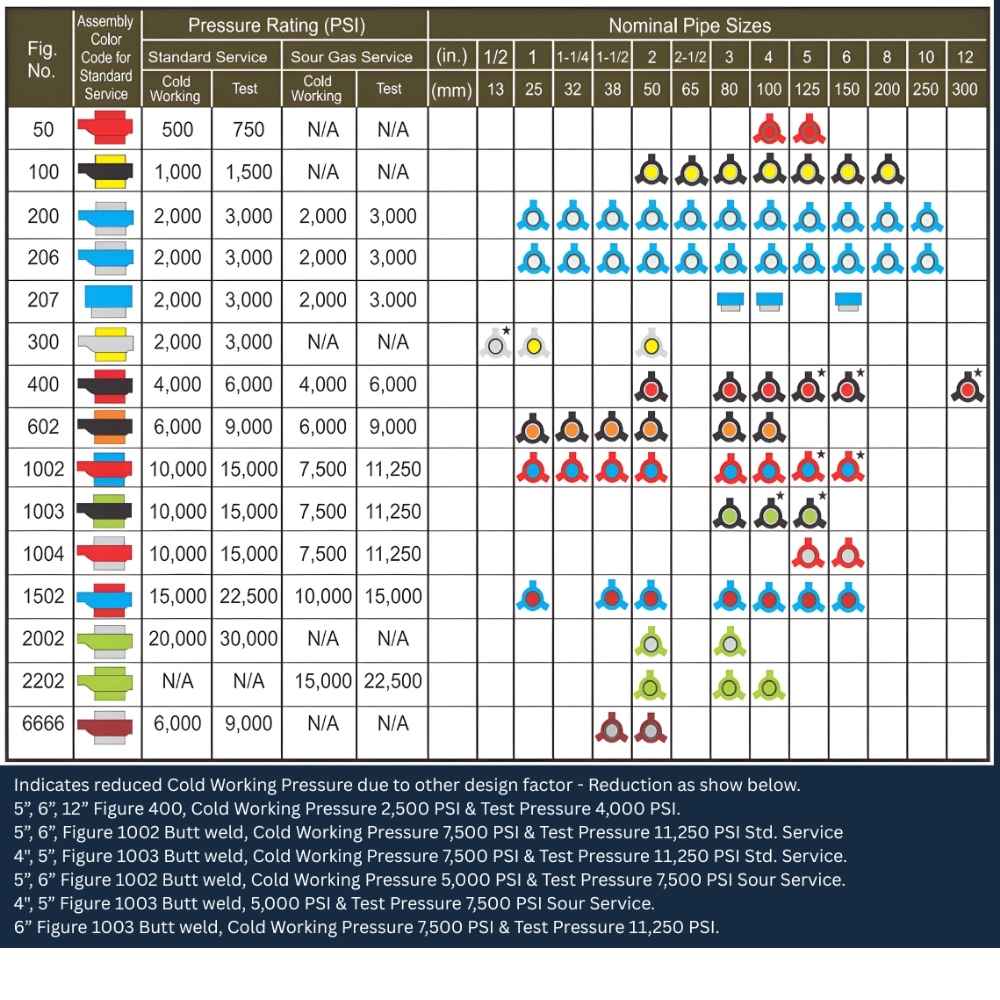

Hammer Union Figure & Sizes Available

die forging & casting component (ASTM A 105/SG IRON)

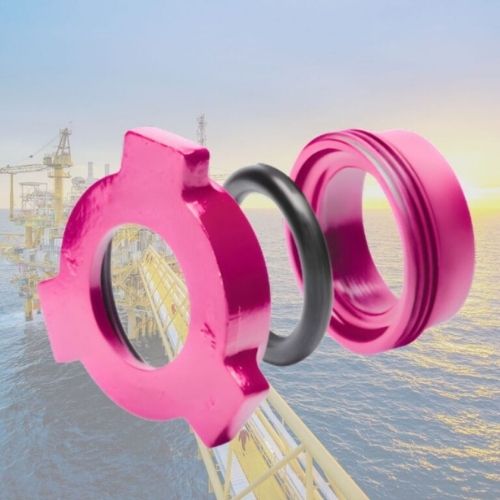

Hammer Seal Union Figure & Sizes Available

hammer seal union range business consultant rawatflowline.com, AR engineering services

500 PSI

Rubber O-Ring Included

SizeButt Weld EndWeightMaterial
3″8SG Iron
4″10SG Iron
6″15SG Iron
8″20SG Iron
10″25SG Iron
12″30SG Iron
14″33.5SG Iron
die forging component (ASTM 105)

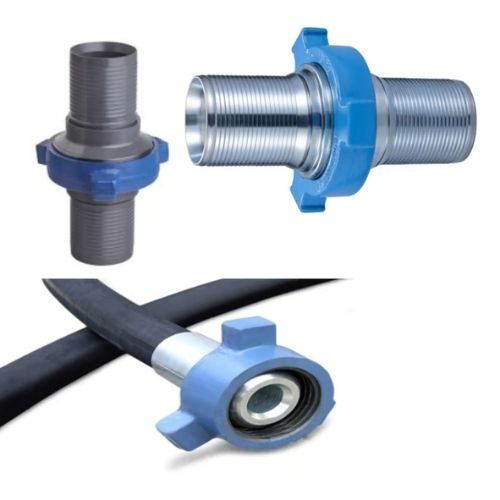

Hammer union with Hose tail

hose tail hammer union range business consultant rawatflowline.com, AR engineering services

Sizes Design Available

2″

3″

4″

6″

8″

10″

12″

Crimped, Double Humped Design Available

We provide

Full Range of hammer union product from fig 50 to fig 2202, Threaded & buttweld design available
