Manifold Fittings

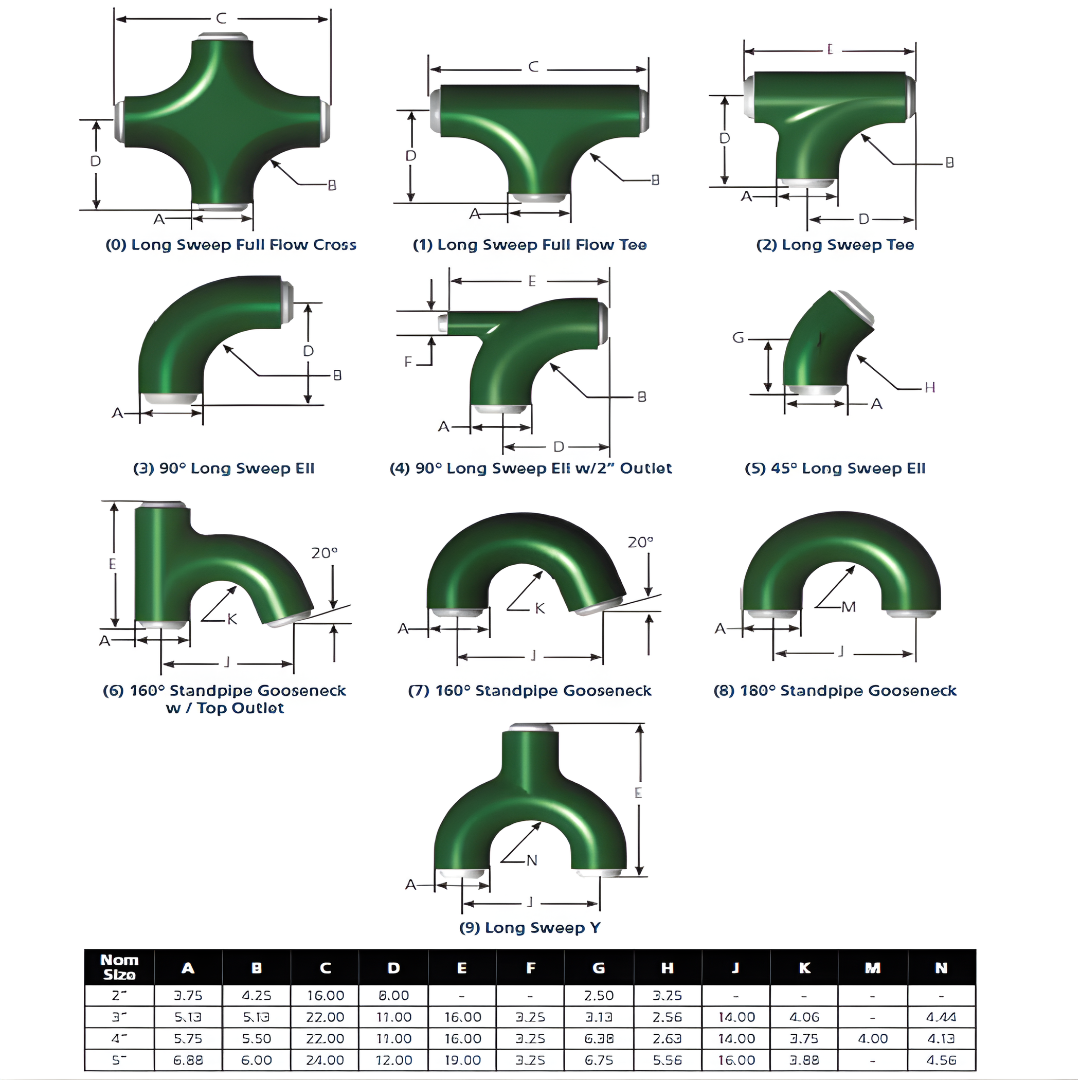

Long Sweep manifold Fittings

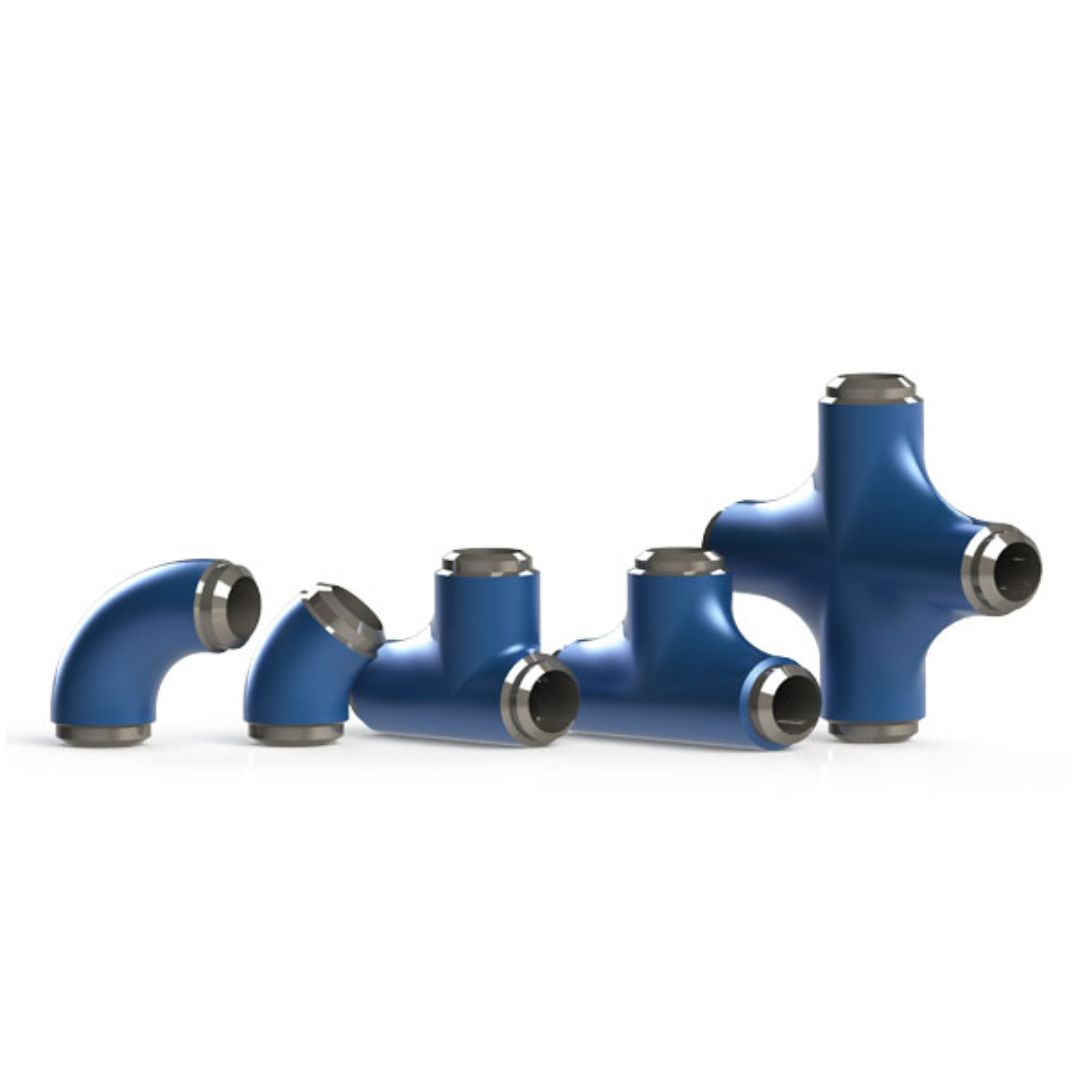

ARES manufacture 4130 long sweep and 3D double back style manifold fittings. They are used for full-flow applications such as cement and mud systems, where a minimum pressure drop is required. The fittings are designed to withstand erosion from these fast-flow conditions.
All of our high-pressure manifold fittings are forged from AISI 4130 grade low-alloy steel, to guarantee high yield strength. They are suitable for high-pressure service of between 5,000psi and 20,000psi working pressure, depending on wall thickness.
Technical
API 6A : Specifications for Wellhead and Christmas Tree Equipment
ANSI B31.3 : Chemical Plant and Petroleum Refinery Piping
ASME B16.9 : Factory Made Wrought Steel Buttwelding Fittings
ASME VIII : Boiler and Pressure Vessel Code
MSS-SP-75 : Specifications for High Test Wrought Butt Weld Fittings
NACE MR-01-75 : Sulphide Stress Cracking Resistant Metallic Materials for Oilfield Equipment
we provide
Long Sweep Manifold Fittings with full material Traceability
